Cosmetic fixes, and prep for animation.

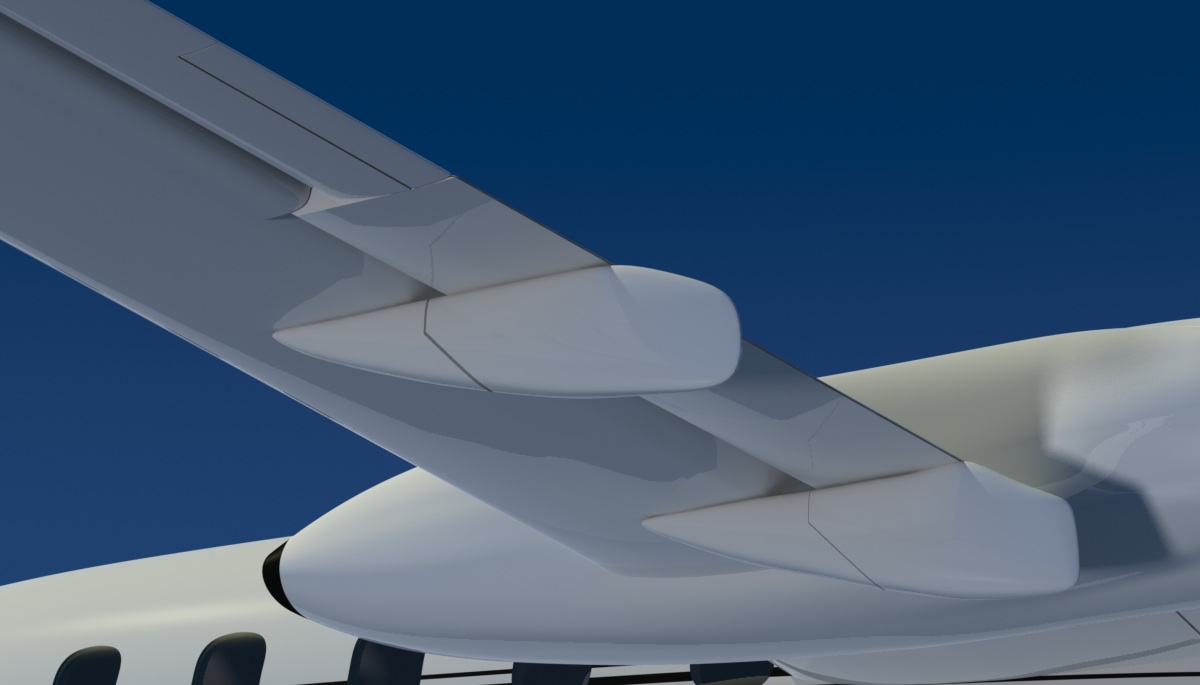

I've added the 2-piece flap fairings on the wings, and later, will be installing an internal track, on which the flaps extend. (For aviation fans, these are "Fowler" flaps outboard, and "Single-slotted", inboard.

The canard, or foreplane, has a single-slotted design too, and so similar fairings were added over those hinges, which are offset. While I was in that area, I also improved the fit of the fuselage-to-canard fairing.

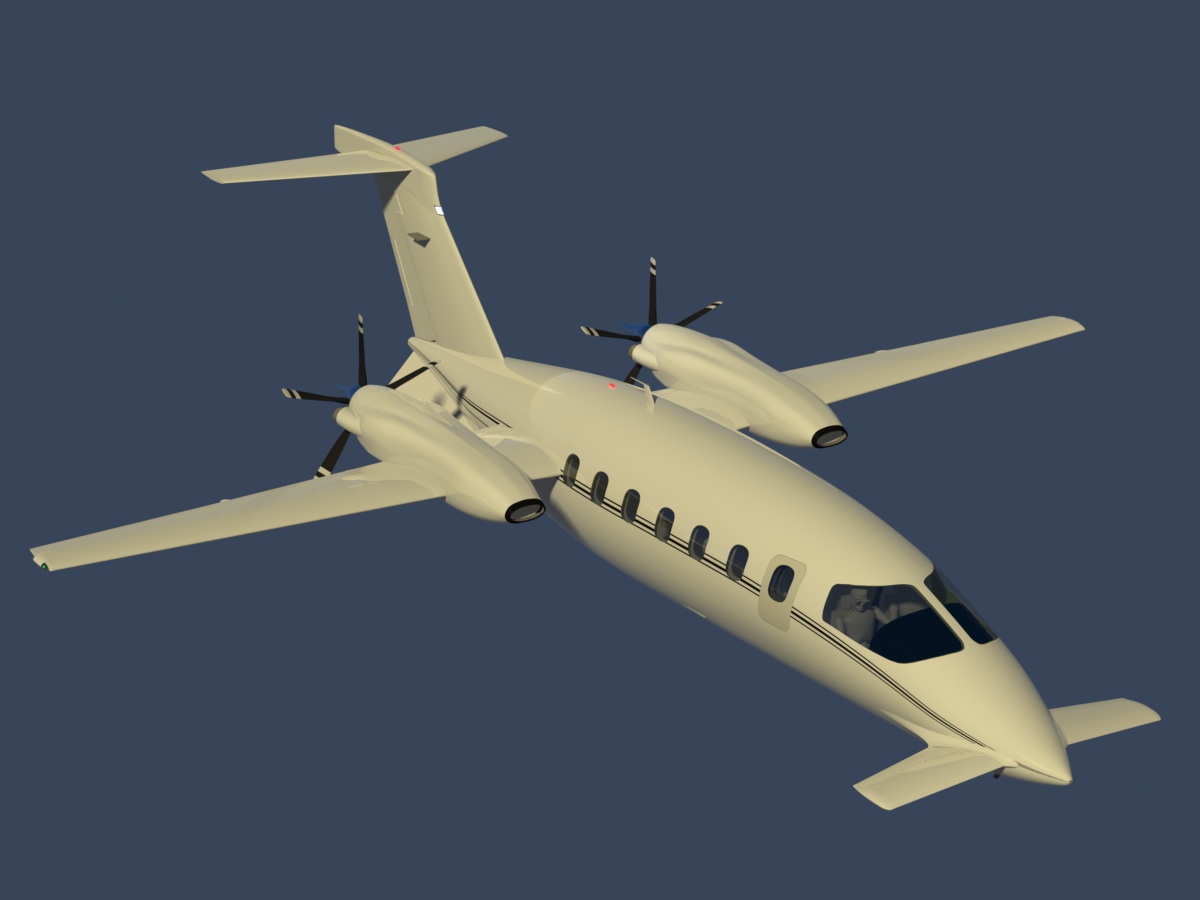

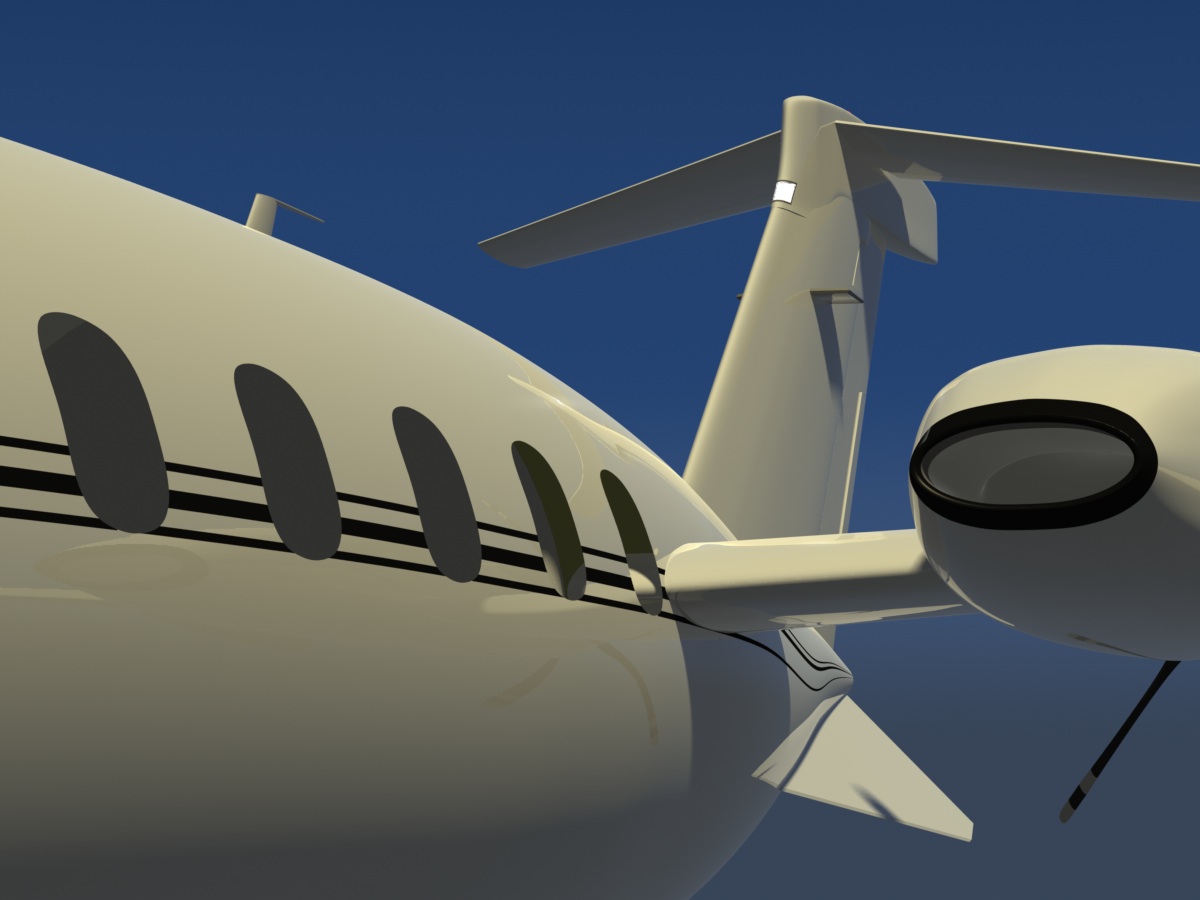

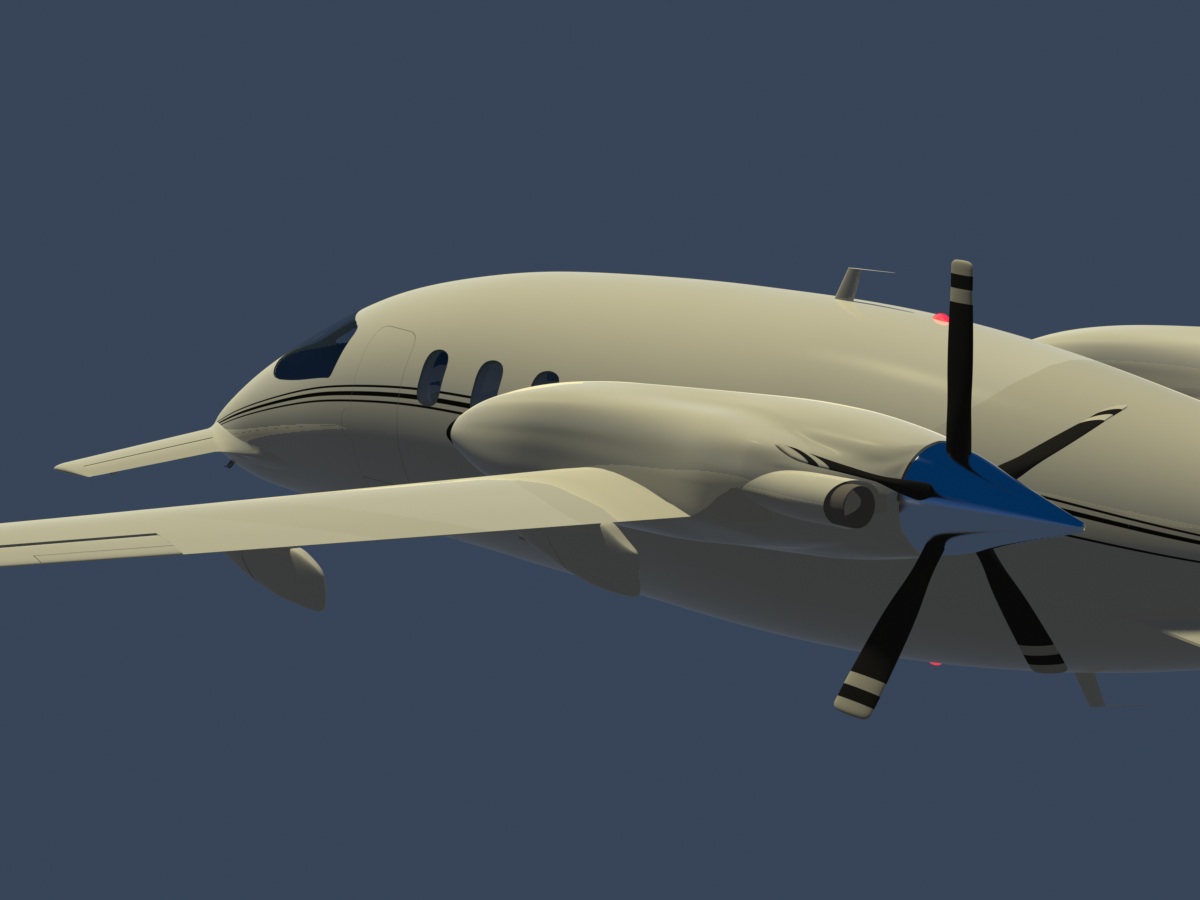

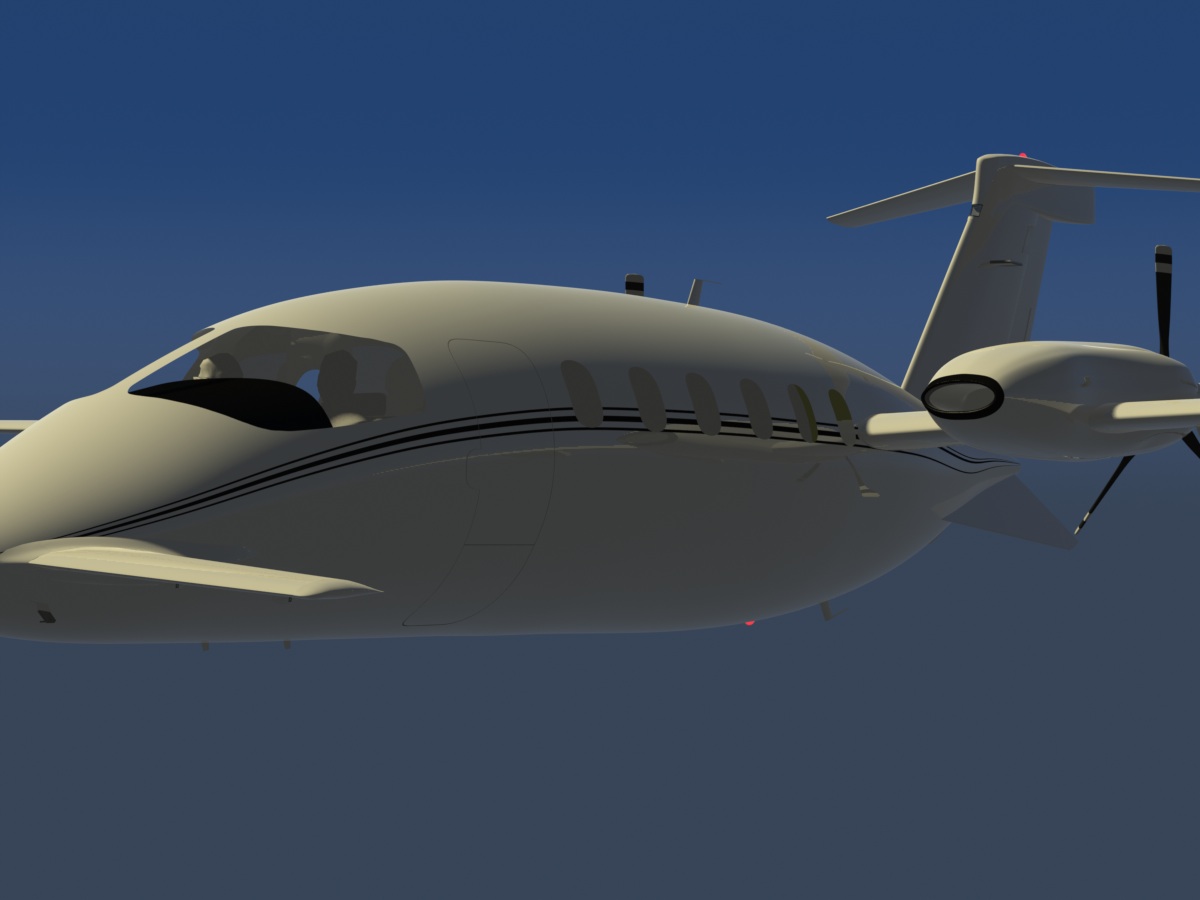

After correcting the nacelle intake shape, I added a full-length intake duct, so that the wing doesn't show through the inlet. Later, I'll add a motor mount, and turbine engine. So... Here are some renders of the plane, as it stands today.
